PRODUCT LINE
4*4 ~ 17*17 mm
P/N : HRMS06030N-SERIES (POPULAR)
Features
- High performance (Isat) realized by metal dust core.
- Low profile: Thickness max. 3.0mm
- Low loss realized with low DCR
- Capable of corresponding high frequency (3MHz)
- 100% lead (Pb) free meet RoHS standard
Application
- DC/DC converter for CPU in Notebook PC
- Thin type on-board power supply module for exchanger
- VRM for server

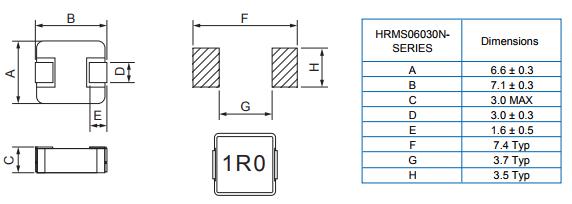

PACKING DIMENSIONS (mm)

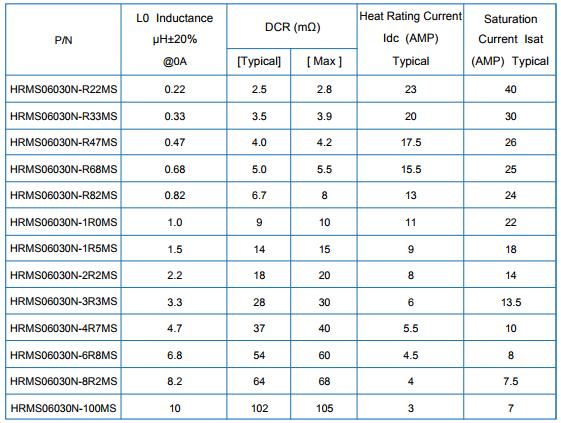

ELECTRICAL CHARACTERISTICS
●All test Data is referenced to 25℃ ambient
● IDC:Typical Heat Rating DC Current would cause an approximately △T of 40℃
● Isat:Typical Saturation DC Current would cause Lo to drop approximately 30%
● Test instrument: L: WK3260B+WK3265B RDC:Chroma 16502
● Test Frequency:100KHZ/1.0V
**If you need any further information, please feel free to contact us.
|
